Designed Nexus DCNM Lab with Windows server 2019 LACP

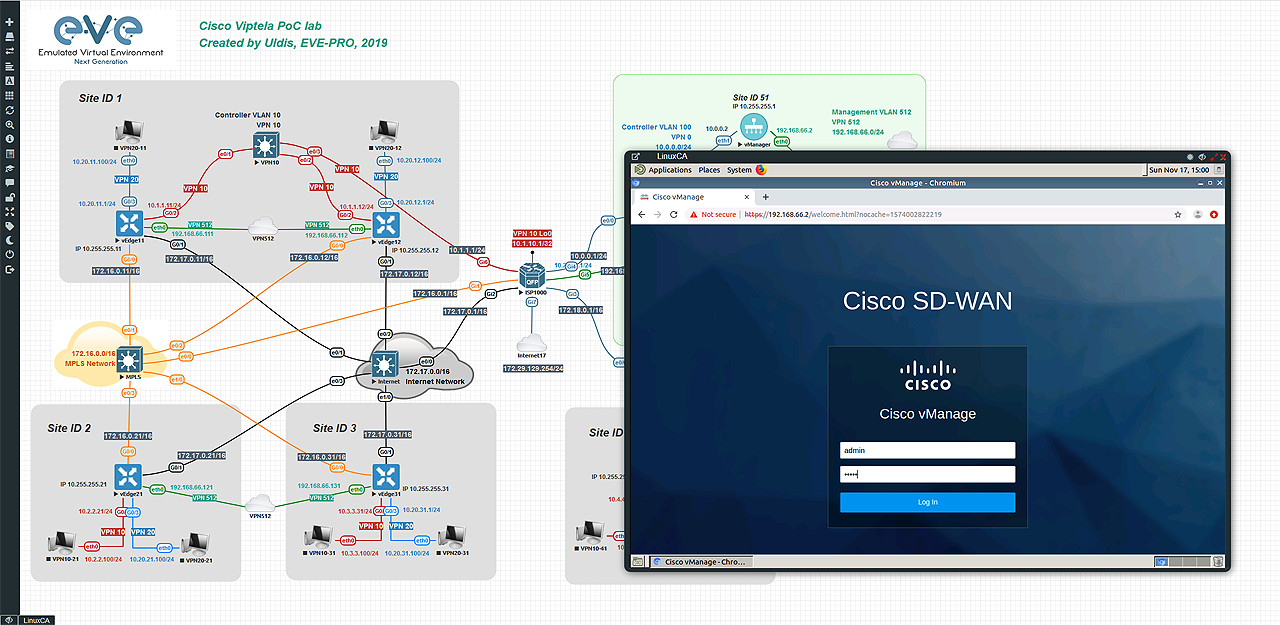

Designed SD-WAN Viptela lab, light background mode
Designed PoC Lab DMVPN with FirePower FTD and Multiconext ASA

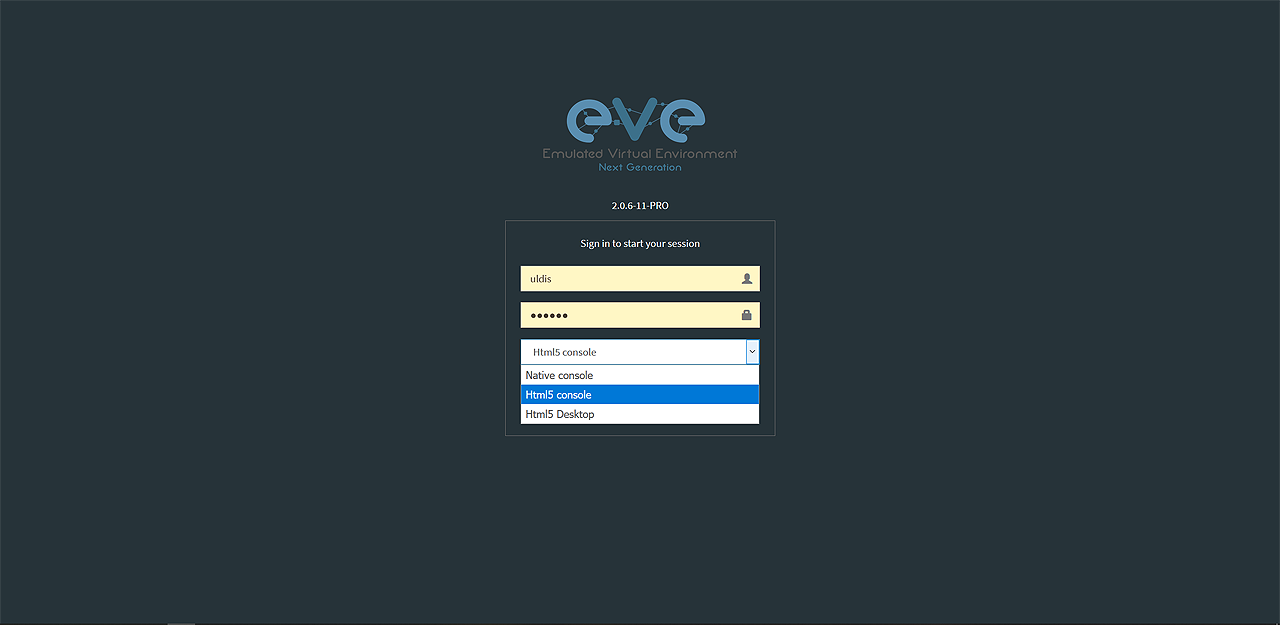

Login screen with console types choice. Native, HTML5 and HTML5 desktop

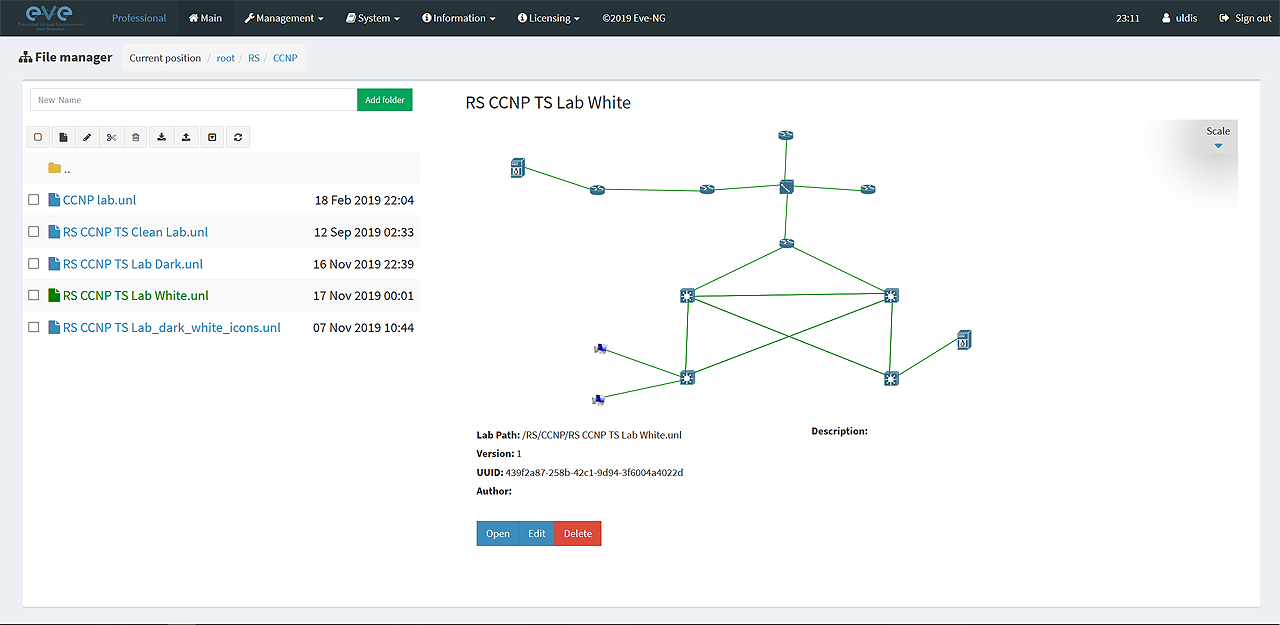

Main EVE WEB GUI window with lab preview

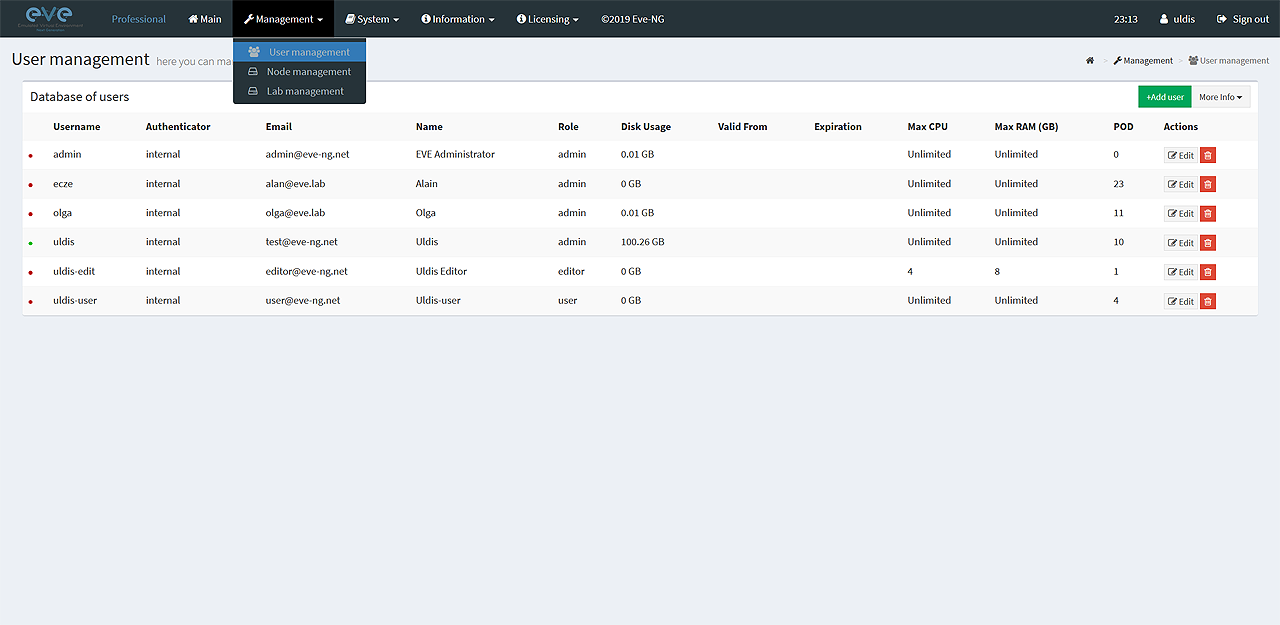

Users management

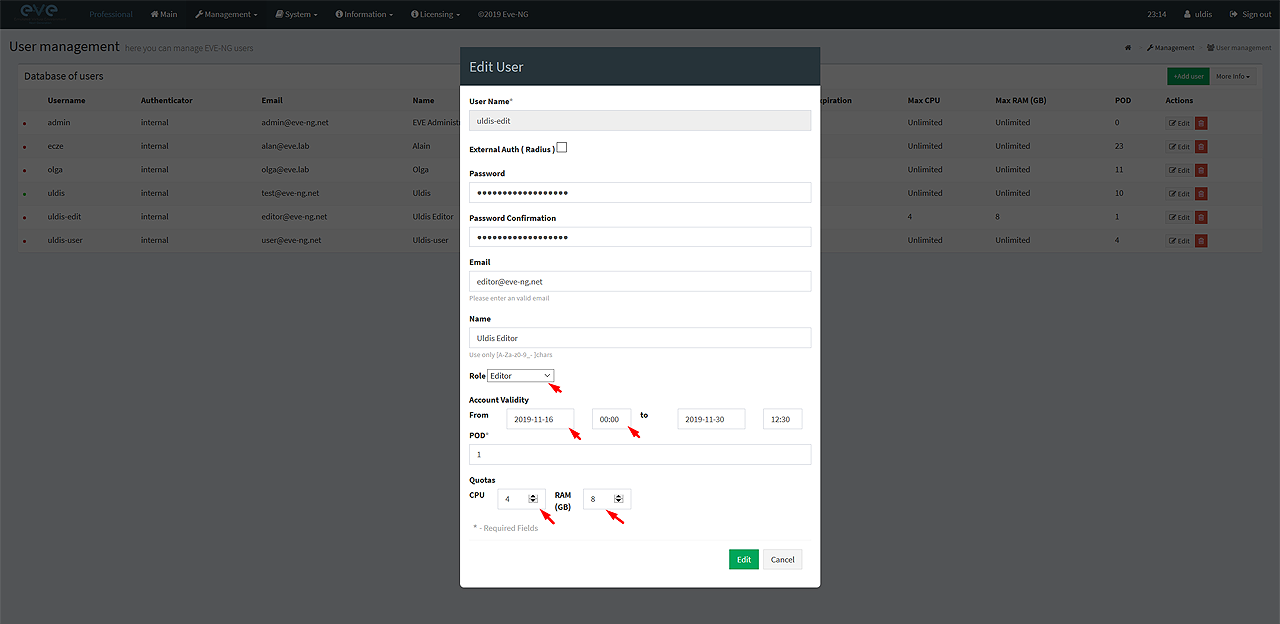

User Edit window. Allows set user authentication type (local/radius), user details, user account role, access time and limits to use EVE server

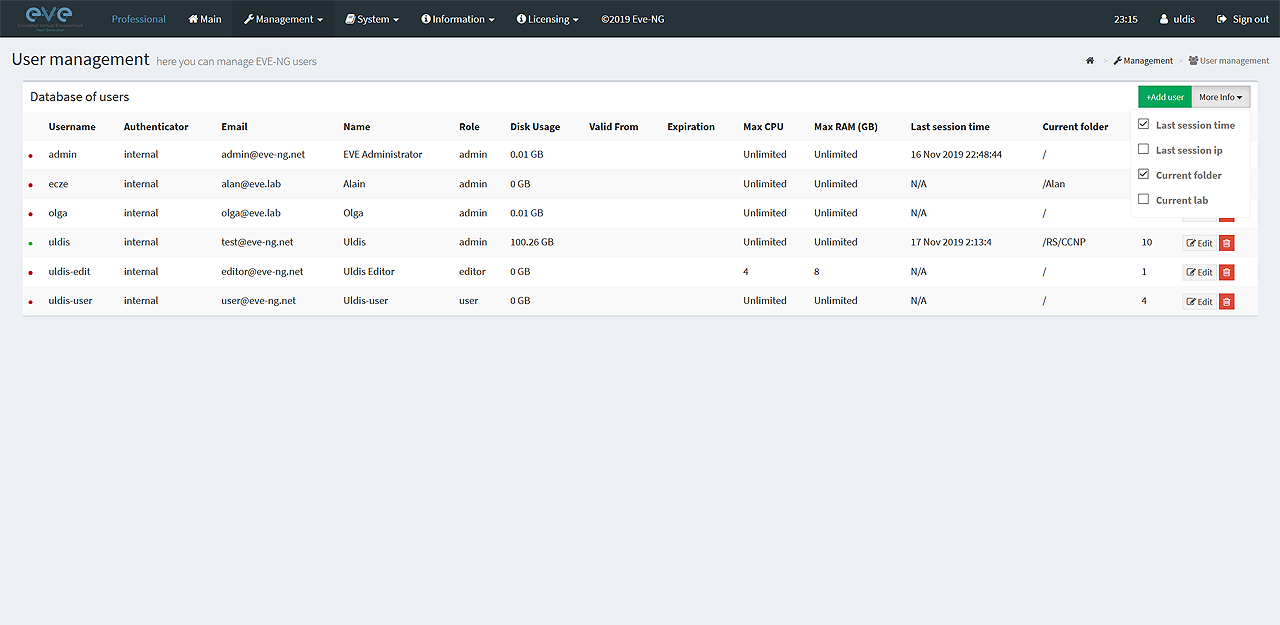

Extra Users information options to view, last session, HDD use, IP etc

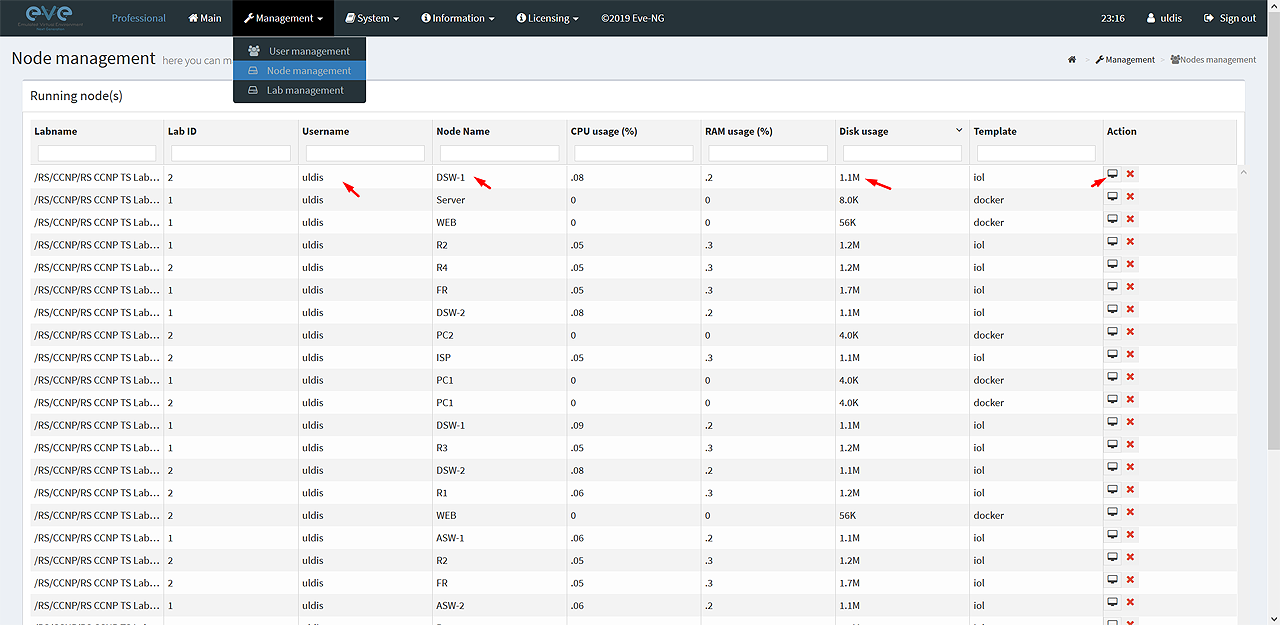

Nodes management. Monitors nodes running state in labs, HDD usage, which user is running lab. Nodes management allows Admin connect in parallel session to node, stop or wipe node

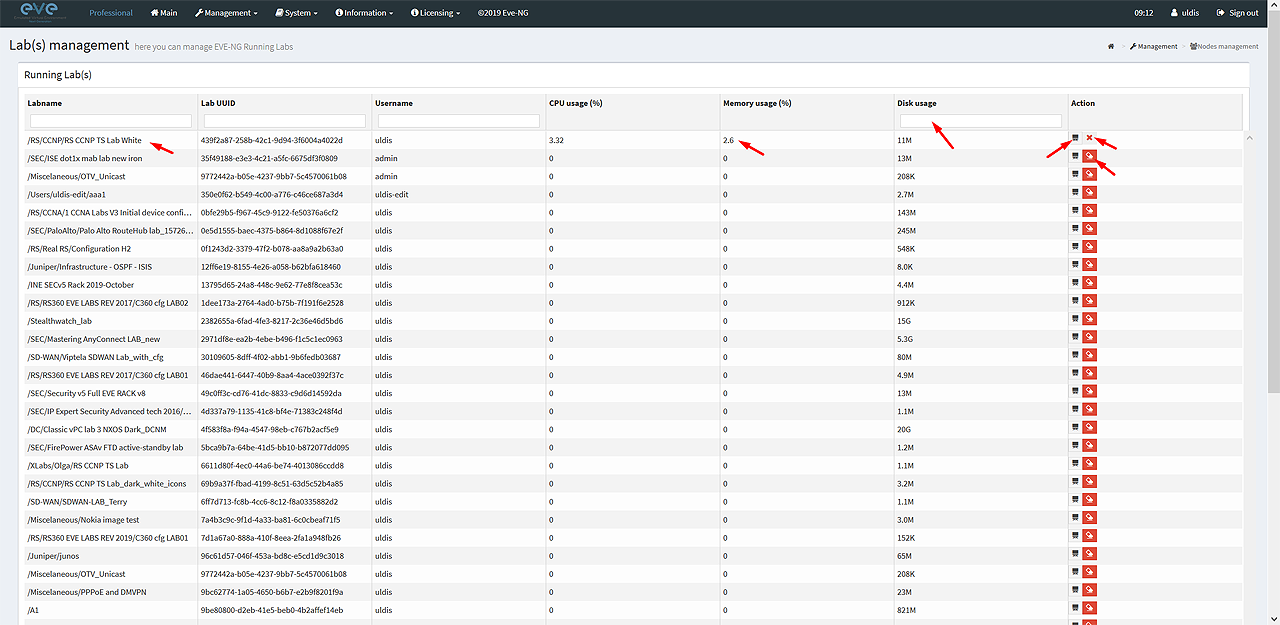

Lab management. Monitors running labs CPU and RAM utilization in the EVE server. Admin can stop or wipe lab. Admin user can join to the other user lab in parallel session. List filtering option. Example: Filter HDD use by G (gigabyte), labs with X Gb of HDD use
EVE System settings. Set radius server (2), Proxy server, Proxy port, set templates visibility in nodes list and set critical warning message threshold for HDD utilization.

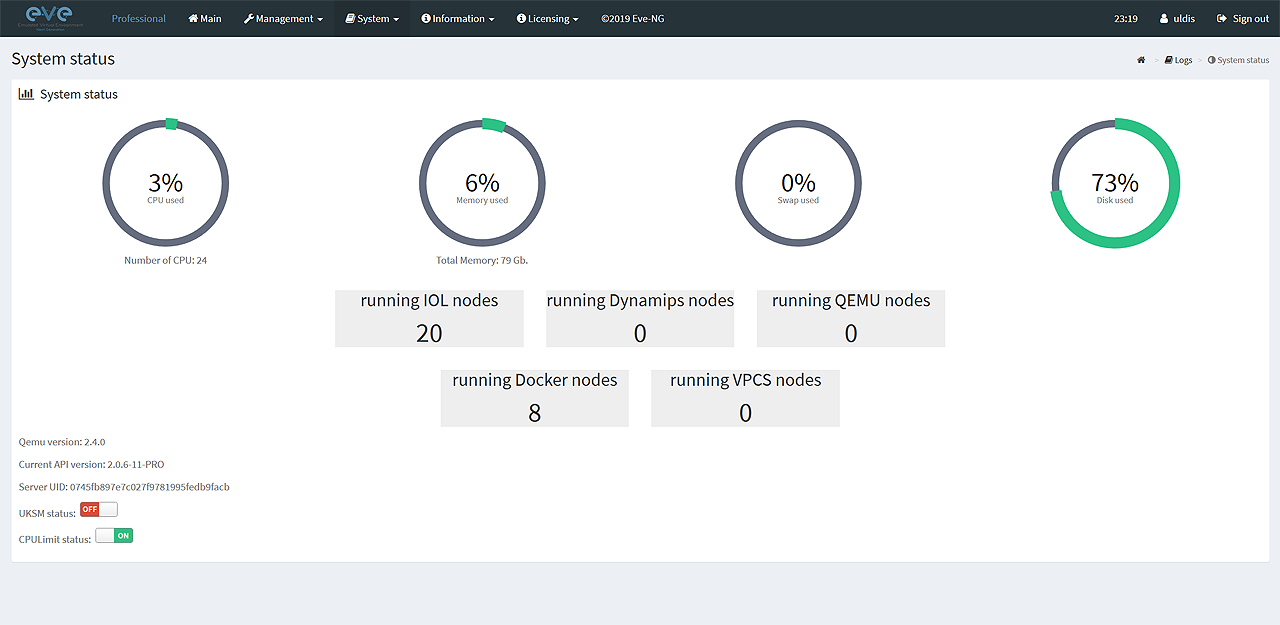

EVE System live status. Monitors in live EVE CPU, RAM, and HDD use in current state.

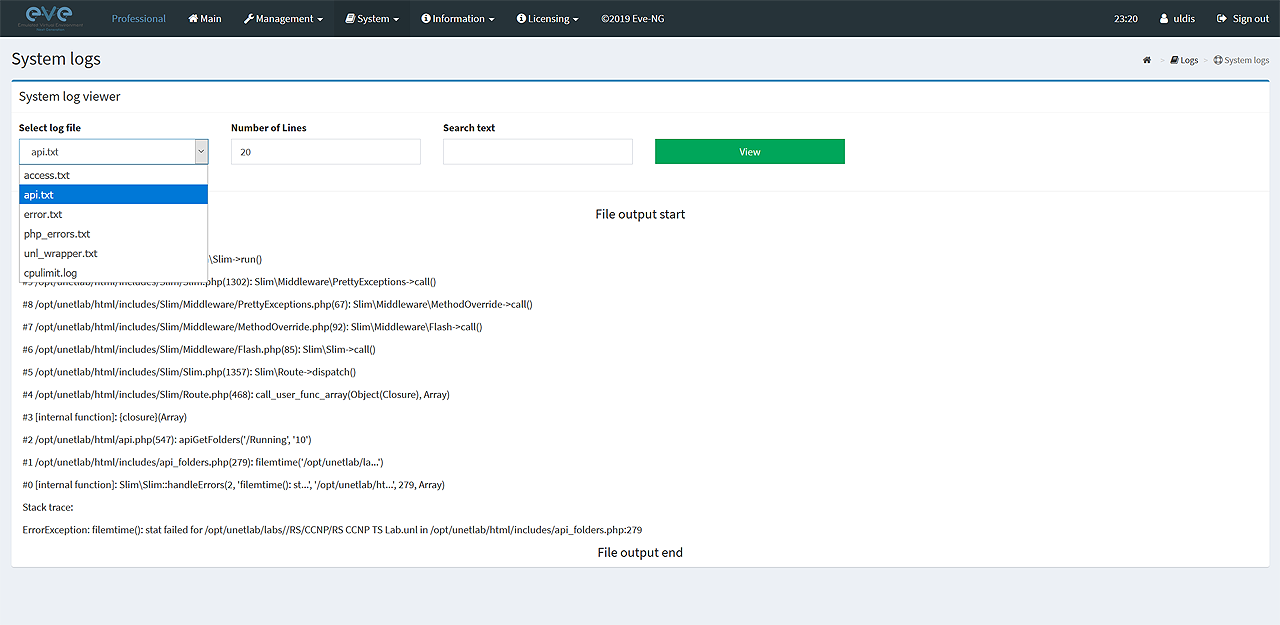

EVE system logs page. Collect systems log files.

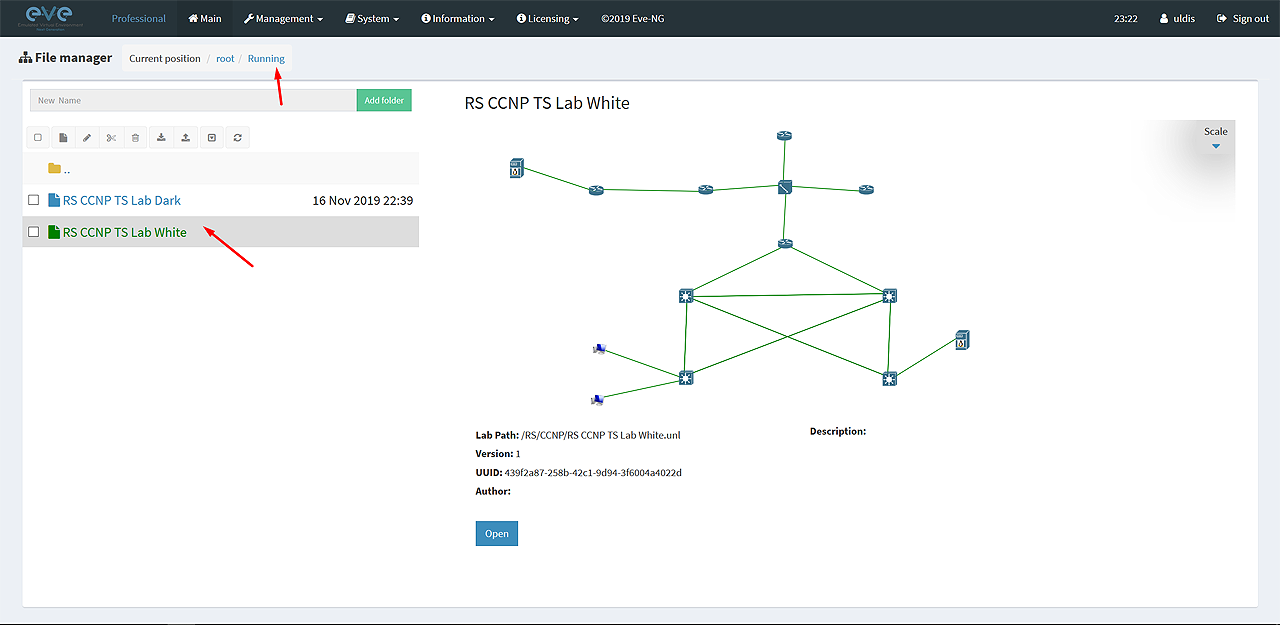

Multi lab running at the same time. Running labs appears under Running folder

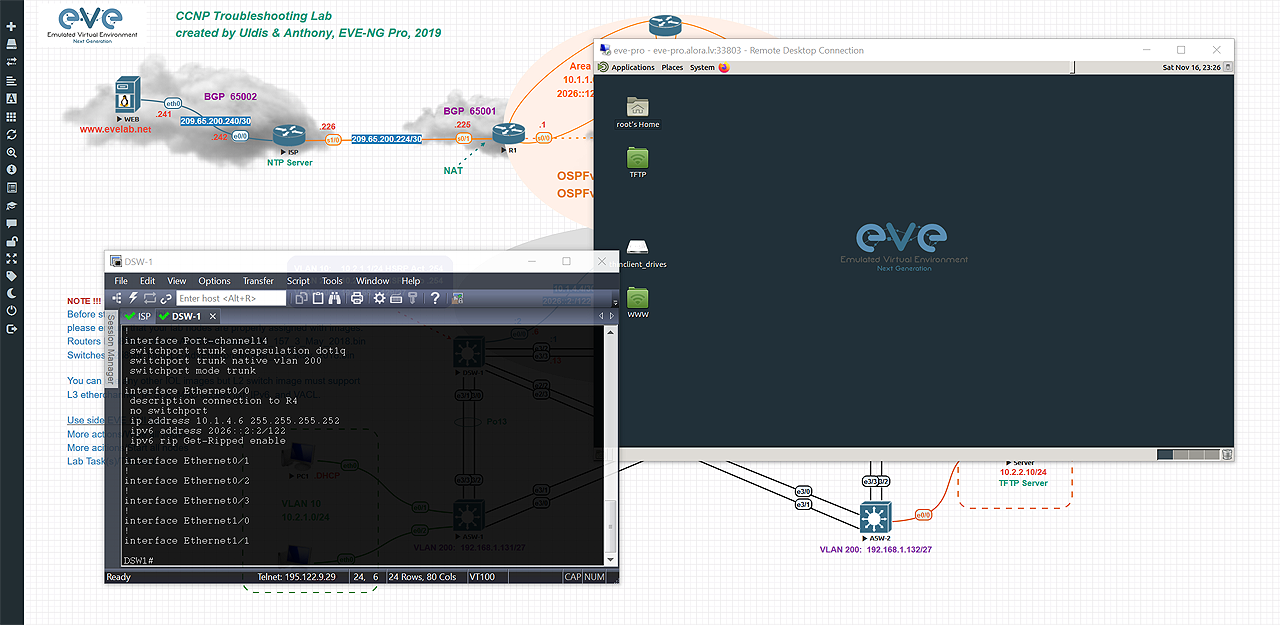

EVE Native console. Using locally installed telnet clients, Putty, Secure CRT, etc
EVE Clientless HTML5 Console
EVE total clientless HTML5 Desktop console. Embedded docker station allows manage and run EVE over single HTML session.
Embedded Wireshark docker station. Allows live traffic capture for different types of links. Ethernet and serial (HDLC, PPP, Frame relay). Wireshark files can be saved and exported to local host

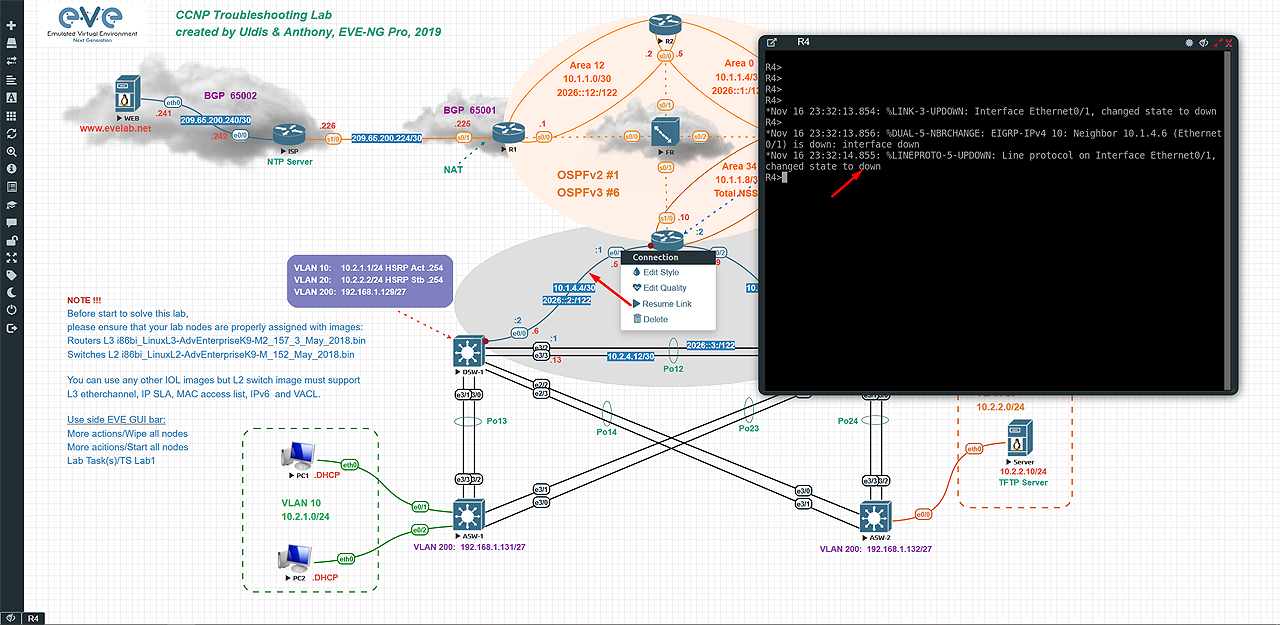

Link suspend/resume feature. Allows simulate broken wire. Suspend link sends signal to node that connection is broken, interface state down/down

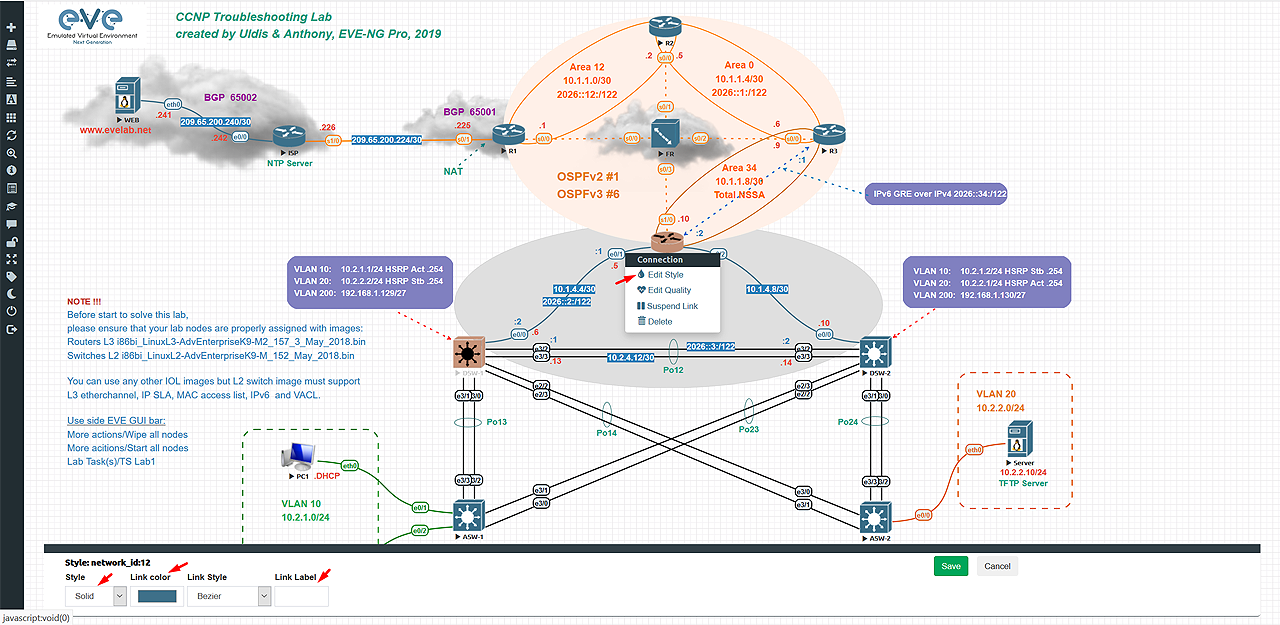

Link style option allows you design and customize links between the nodes. Color, style, label

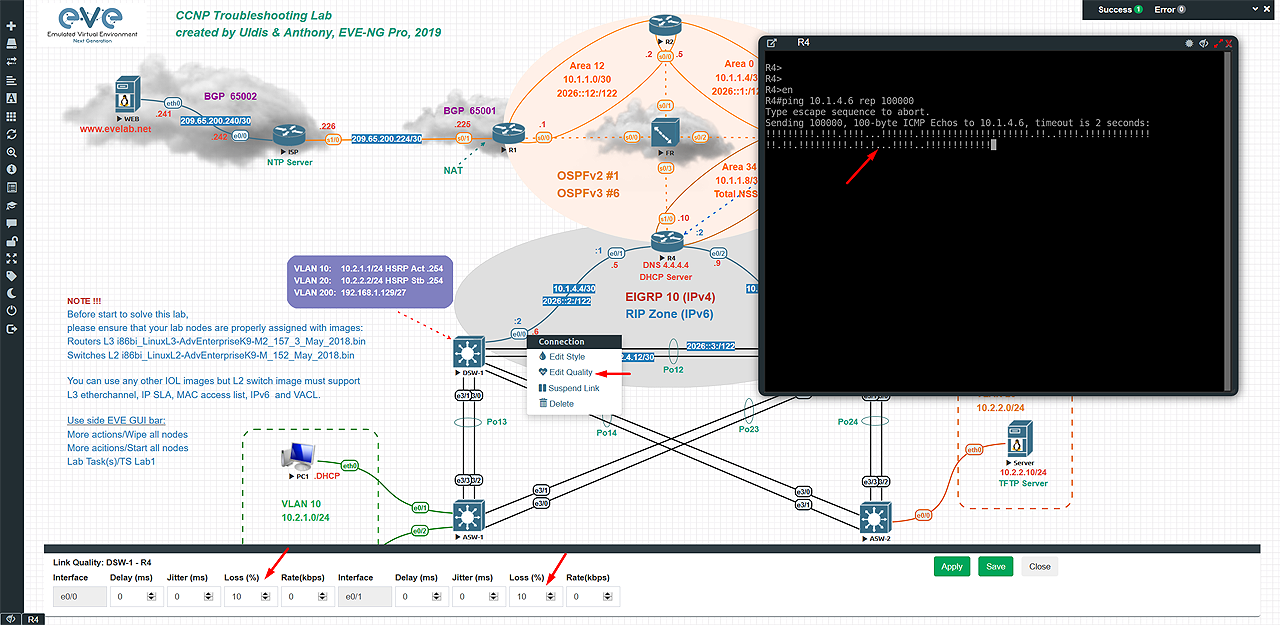

Link quality option allows simulate on link delay, jitter, packet loss or rate

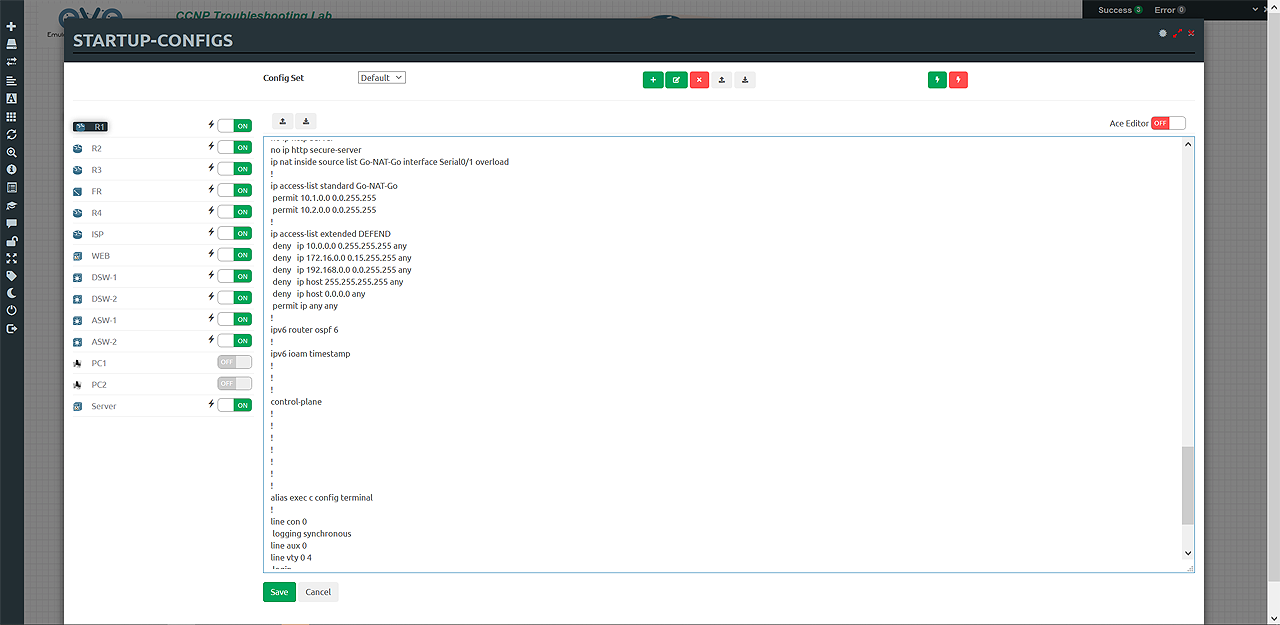

Multi configurations for single lab feature allows you create, save and export states of lab in separate configuration sets

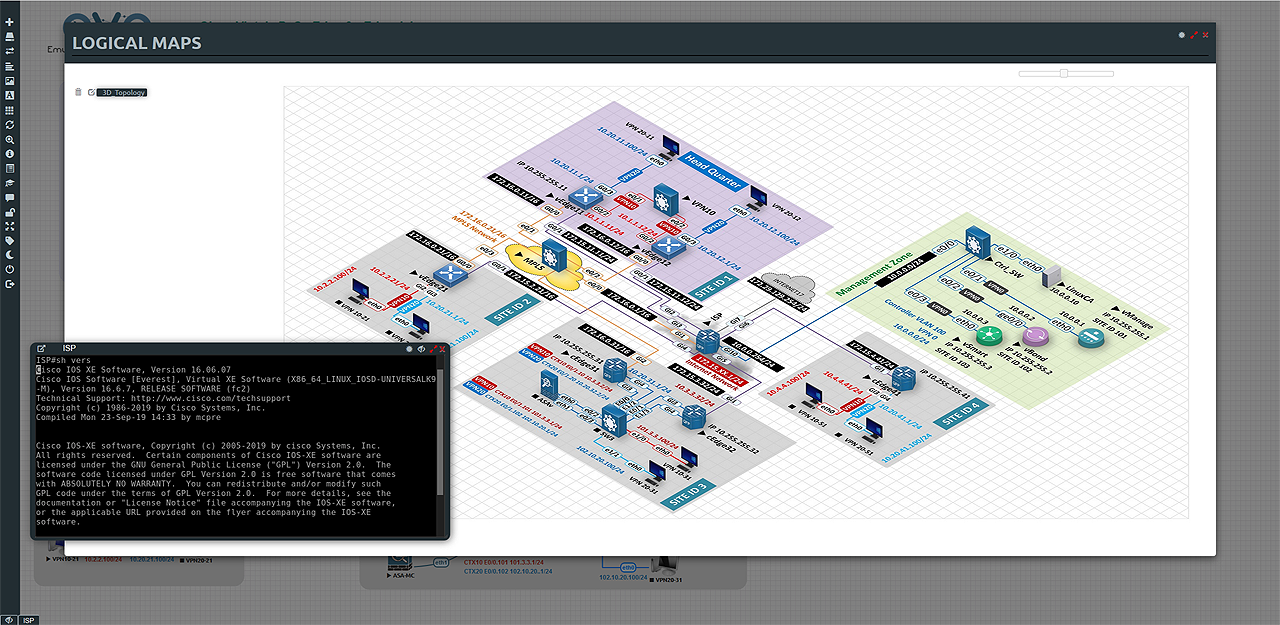

Logical map feature allows import your own topology in png format and make it interactive. Click on custom topology node will open telnet or other sessions to the node

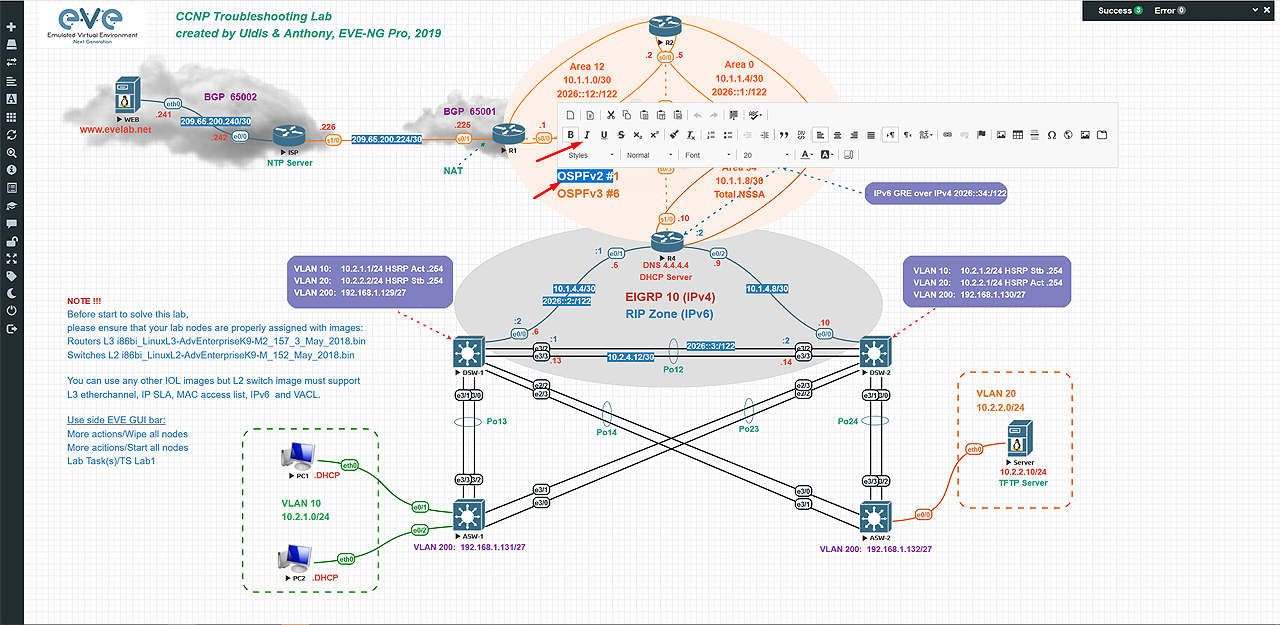

Lab design elements and rich text editor feature allows add text and external objects in your topology

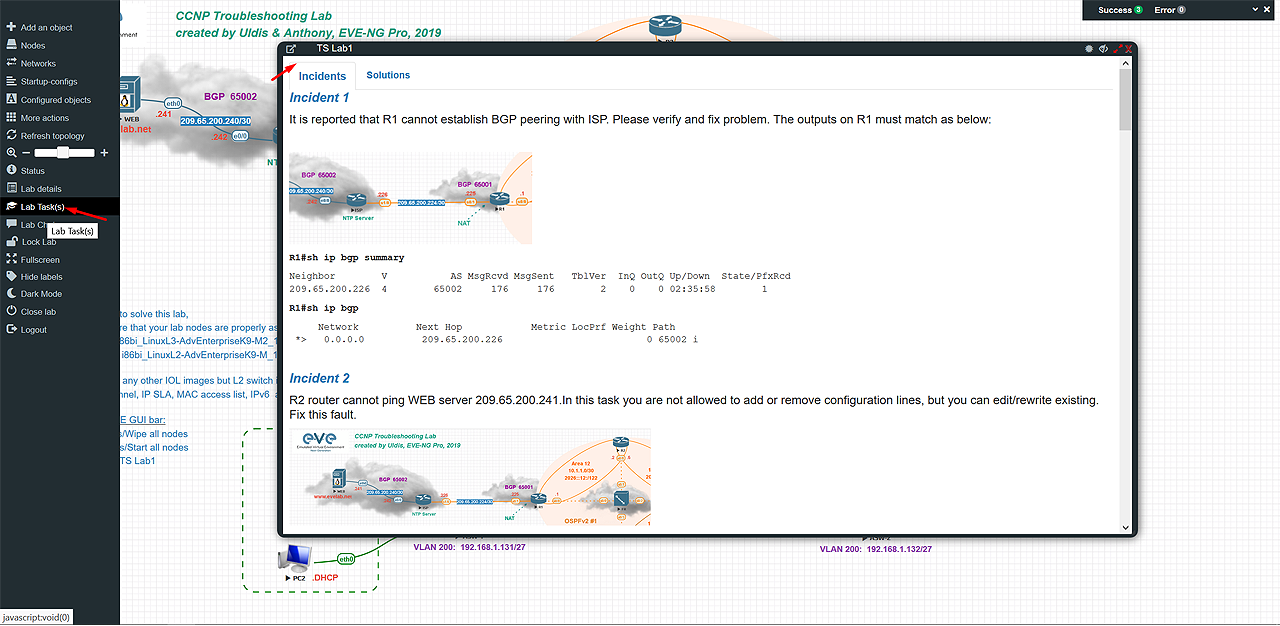

Lab task feature allows you create own books or lab tasks in the lab. It allows integrate html links to open internet session as task book
Integrated live chat between EVE server users
Lab background dark mode

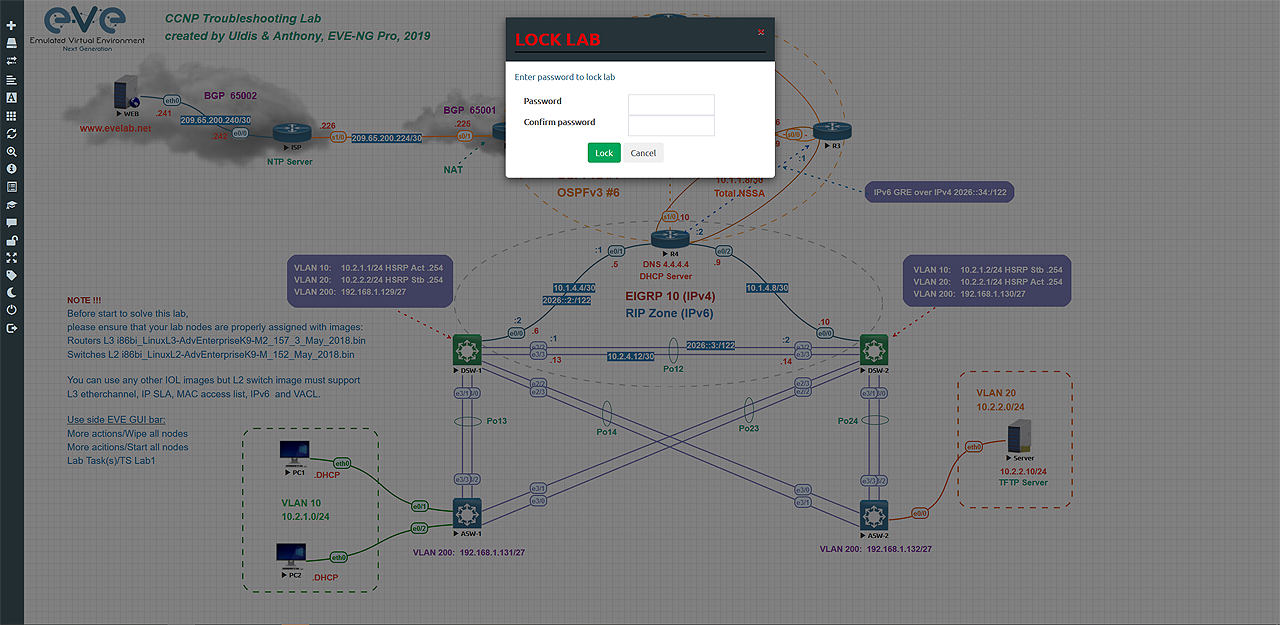

Lab Lock option allows to secure lab and prevent it against accidental change
