SonicWALL FW

Versions this guide are based on:

EVE Image Name Downloaded image Filename Version vCPUs vRAM Interfaces Console
sonicwall-NSv-200-6.5.4.4-44v-21-1288 SonicWall_NSv_6.5.4.4-44v-21-1288_For_QEMU_VM.zip

Unzip downloaded file to obtain: SonicWall_NSv__For_QEMU_VM.img

6.5.4.4-44v-21-1288 2 6144 8 vnc and https://ip
sonicwall-NSv-270-7.0.1-5023 SonicWall_NSv_7.0.1-5023_For_QEMU_VM.img 7.0.1-5023 4 8192 8 vnc and https://ip



Instructions
NOTE: These both How to steps below are based on exactly downloaded NSv versions. The newer NSv version image should work accordingly the steps below.

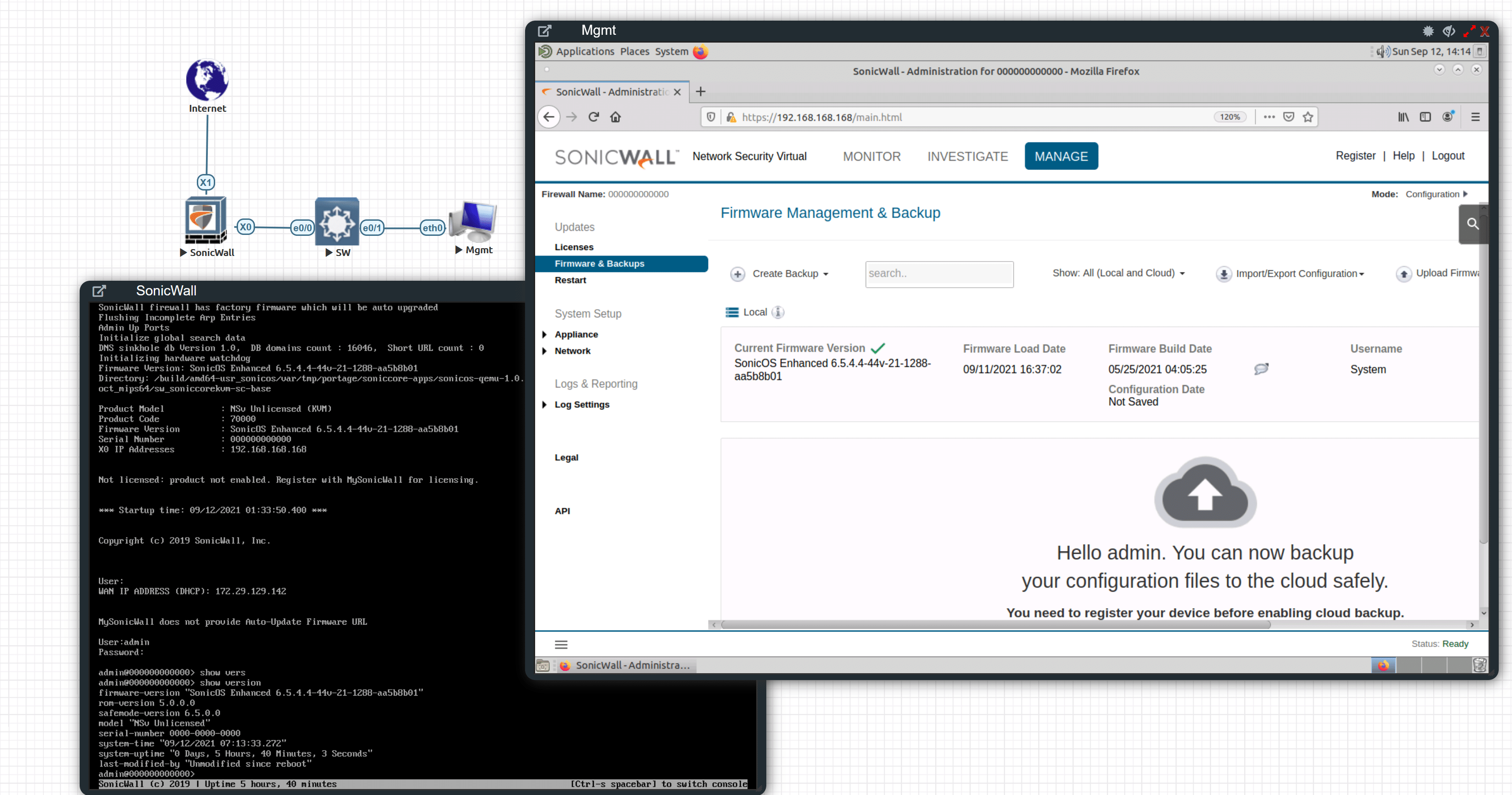

Create NSv200

Steps below are based on SonicWall NSv 200 KVM deployment.

1. Deployment of SonicWALL NSv 200 KVM image

Step 1. SSH to EVE and login as root, and from cli create folder for new SonicWall node:

mkdir /opt/unetlab/addons/qemu/sonicwall-NSv-200-6.5.4.4-44v-21-1288

Step 2. Upload the SonicWall_NSv__For_QEMU_VM.img image to the /opt/unetlab/addons/qemu/sonicwall-NSv-200-6.5.4.4-44v-21-1288 using  FileZilla or WinSCP.

Step 3. Go to image location and rename img image to virtioa.qcow2:

cd /opt/unetlab/addons/qemu/sonicwall-NSv-200-6.5.4.4-44v-21-1288

root@eve-ng:/opt/unetlab/addons/qemu/sonicwall-NSv-200-6.5.4.4-44v-21-1288# ls
SonicWall_NSv__For_QEMU_VM.img
root@eve-ng:/opt/unetlab/addons/qemu/sonicwall-NSv-200-6.5.4.4-44v-21-1288#

mv SonicWall_NSv__For_QEMU_VM.img virtioa.qcow2

root@eve-ng:/opt/unetlab/addons/qemu/sonicwall-NSv-200-6.5.4.4-44v-21-1288# ls
virtioa.qcow2

Note: all images default cli login is: admin/password



Create NSv270

Steps below are based on SonicWall NSV 270 KVM deployment.

2. Deployment of SonicWALL NSv 270 KVM image

Step 1. SSH to EVE and login as root, and from cli create folder for new SonicWall node:

mkdir /opt/unetlab/addons/qemu/sonicwall-NSv-270-7.0.1-5023

Step 2. Upload the SonicWall_NSv_7.0.1-5023_For_QEMU_VM.img image to the /opt/unetlab/addons/qemu/sonicwall-NSv-270-7.0.1-5023 using  FileZilla or WinSCP.

Step 3. Go to image location and rename img image to virtioa.qcow2:

cd /opt/unetlab/addons/qemu/sonicwall-NSv-270-7.0.1-5023

root@eve-ng:/opt/unetlab/addons/qemu/sonicwall-NSv-270-7.0.1-5023# ls
SonicWall_NSv_7.0.1-5023_For_QEMU_VM.img
root@eve-ng:/opt/unetlab/addons/qemu/sonicwall-NSv-270-7.0.1-5023#

mv SonicWall_NSv_7.0.1-5023_For_QEMU_VM.img virtioa.qcow2

root@eve-ng:/opt/unetlab/addons/qemu/sonicwall-NSv-270-7.0.1-5023# ls
virtioa.qcow2

Note: all images default cli login is: admin/password
